E34 525td M51 Touring / Engine/ Timing Case
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

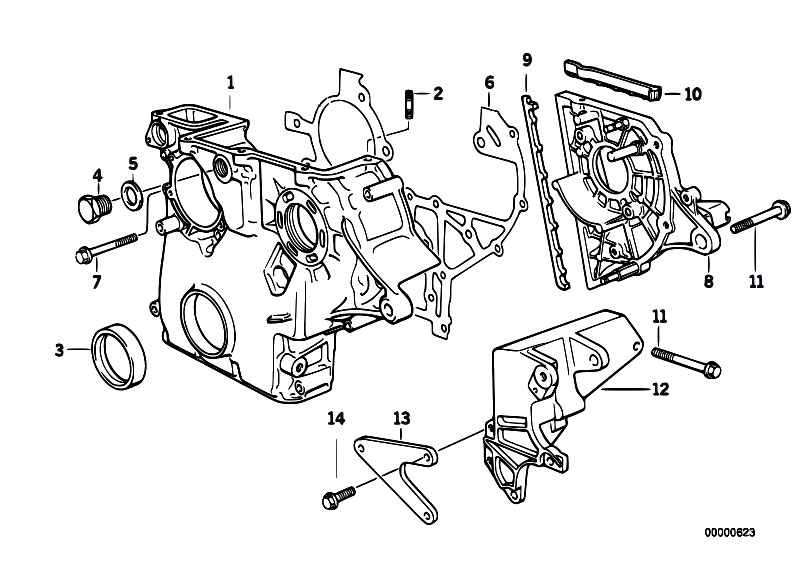

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11142246189 | Timing case cover, bottom | 2.152 kg | 1,370.44 €1,370.44 $ | ||||
| 1 | 11142244492 | Timing case cover, bottom | 2.040 kg | 237.49 €237.49 $ | ||||
| 2 | 07129908102 | Stud bolt | M6X30-ZN | 0.004 kg | 0.51 €0.51 $ | |||
| 3 | 11142249532 | Shaft seal | 48X65X10 | 0.020 kg | 26.26 €26.26 $ | |||
| 4 | 11141461423 | Screw plug | M20X1,5 | 0.032 kg | 20.41 €20.41 $ | |||
| 4 | 11142244615 | Screw plug with gasket ring | M20X1,5 | 0.034 kg | 5.00 €5.00 $ | |||
| 5 | 07119963342 | Gasket ring | A20X24-CU | 0.000 kg | 0.67 €0.67 $ | |||
| 6 | 11142245175 | Gasket Steel | 0.052 kg | 47.21 €47.21 $ | ||||
| 6 | 11142245879 | Gasket Asbestos Free | 0.085 kg | 82.66 €82.66 $ | ||||
| 7 | 07119913339 | Hex Bolt with washer | M6X50-Z1-ZN | 0.012 kg | 0.58 €0.58 $ | |||
| 8 | 13512245864 | Supporting bracket | D=68MM/50MM | 1.110 kg | 208.40 €208.40 $ | |||
| 9 | 13512244766 | Profile-gasket | 0.000 kg | 12.60 €12.60 $ | ||||
| 10 | 13512244765 | Profile-gasket | 0.004 kg | 12.80 €12.80 $ | ||||
| 11 | 07119900258 | Hex Bolt with washer | M8X55-Z1-ZNS | 0.020 kg | 0.35 €0.35 $ | |||
| 12 | 12312245747 | Supporting bracket | 0.605 kg | 51.23 €51.23 $ | ||||
| 13 | 11162243503 | Support plate | 0.047 kg | 10.60 €10.60 $ | ||||
| 14 | 07119915093 | Hex Bolt with washer | M8X20-Z1 | 0.010 kg | 0.60 €0.60 $ |
