E36 320i M50 Cabrio / Engine/ Oil Pan Oil Level Indicator 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

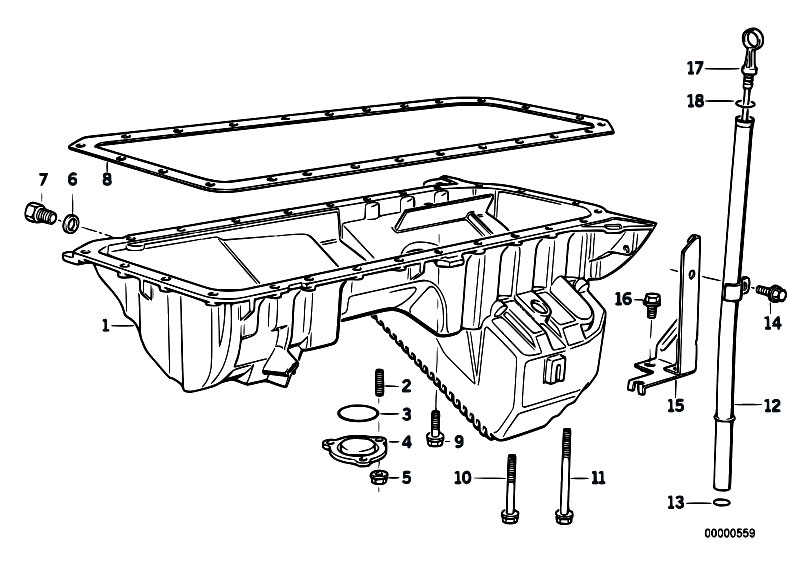

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11131735937 | Oil pan | 4.650 kg | 735.05 €735.05 $ | ||||
| 1 | 11131735937 | Oil pan | 4.650 kg | 735.05 €735.05 $ | ||||
| 2 | 07129908111 | Stud bolt | M6X28-ZN | 0.004 kg | 4.16 €4.16 $ | |||
| 2 | 07129908111 | Stud bolt | M6X28-ZN | 0.004 kg | 4.16 €4.16 $ | |||
| 3 | 12611277129 | Gasket ring | 40X4 | 0.003 kg | 7.18 €7.18 $ | |||
| 3 | 12611277129 | Gasket ring | 40X4 | 0.003 kg | 7.18 €7.18 $ | |||
| 4 | 11131726357 | Cover lid | 0.032 kg | 12.48 €12.48 $ | ||||
| 4 | 11131726357 | Cover lid | 0.032 kg | 12.48 €12.48 $ | ||||
| 5 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 5 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 5 | 07129904553 | Hex nut with plate | AM6-8-ZNNIV SI | 0.000 kg | 0.74 €0.74 $ | |||
| 5 | 07129904553 | Hex nut with plate | AM6-8-ZNNIV SI | 0.000 kg | 0.74 €0.74 $ | |||
| 6 | 07119963150 | Gasket ring | A12X17-AL | 0.000 kg | 0.35 €0.35 $ | |||
| 6 | 07119963150 | Gasket ring | A12X17-AL | 0.000 kg | 0.35 €0.35 $ | |||
| 7 | 11131273093 | Screw plug | M12X1,5 | 0.020 kg | 2.76 €2.76 $ | |||
| 7 | 11131273093 | Screw plug | M12X1,5 | 0.020 kg | 2.76 €2.76 $ | |||
| 8 | 11131437237 | Gasket Steel | 0.139 kg | 33.00 €33.00 $ | ||||
| 8 | 11131437237 | Gasket Steel | 0.139 kg | 33.00 €33.00 $ | ||||
| 9 | 07119915031 | Hex Bolt with washer | M6X20-Z3 | 0.006 kg | 0.88 €0.88 $ | |||
| 9 | 07119915031 | Hex Bolt with washer | M6X20-Z3 | 0.006 kg | 0.88 €0.88 $ | |||
| 10 | 07119913001 | Hex Bolt with washer | M6X60-Z3 | 0.014 kg | 0.35 €0.35 $ | |||
| 10 | 07119913001 | Hex Bolt with washer | M6X60-Z3 | 0.014 kg | 0.35 €0.35 $ | |||
| 10 | 07119912351 | Hex Bolt | M6X60 | 0.014 kg | 0.58 €0.58 $ | |||
| 10 | 07119912351 | Hex Bolt | M6X60 | 0.014 kg | 0.58 €0.58 $ | |||
| 11 | 07119912701 | Hex Bolt with washer | M6X95-Z1 | 0.020 kg | 0.73 €0.73 $ | |||
| 11 | 07119912701 | Hex Bolt with washer | M6X95-Z1 | 0.020 kg | 0.73 €0.73 $ | |||
| 11 | 07119905433 | Hex Bolt with washer | M6X95-U1 | 0.018 kg | 1.84 €1.84 $ | |||
| 11 | 07119905433 | Hex Bolt with washer | M6X95-U1 | 0.018 kg | 1.84 €1.84 $ | |||
| 12 | 11431735276 | Guide tube | 0.216 kg | 65.15 €65.15 $ | ||||
| 12 | 11431735276 | Guide tube | 0.216 kg | 65.15 €65.15 $ | ||||
| 13 | 11431287541 | O-ring | 14,5X3 | 0.000 kg | 1.91 €1.91 $ | |||
| 13 | 11431287541 | O-ring | 14,5X3 | 0.000 kg | 1.91 €1.91 $ | |||
| 14 | 07119915017 | Hex Bolt with washer | M6X12-Z1 | 0.006 kg | 1.24 €1.24 $ | |||
| 14 | 07119915017 | Hex Bolt with washer | M6X12-Z1 | 0.006 kg | 1.24 €1.24 $ | |||
| 15 | 11431735278 | Bracket | 0.115 kg | 4.92 €4.92 $ | ||||
| 15 | 11431735278 | Bracket | 0.115 kg | 4.92 €4.92 $ | ||||
| 16 | 07119913011 | Hex Bolt with washer | M8X12-Z3-1 | 0.010 kg | 1.00 €1.00 $ | |||
| 16 | 07119913011 | Hex Bolt with washer | M8X12-Z3-1 | 0.010 kg | 1.00 €1.00 $ | |||
| 17 | 11431427993 | Dipstick | 0.026 kg | 34.07 €34.07 $ | ||||
| 17 | 11431427993 | Dipstick | 0.026 kg | 34.07 €34.07 $ | ||||
| 18 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.01 €1.01 $ | |||
| 18 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.01 €1.01 $ |
