E36 325td M51 Sedan / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

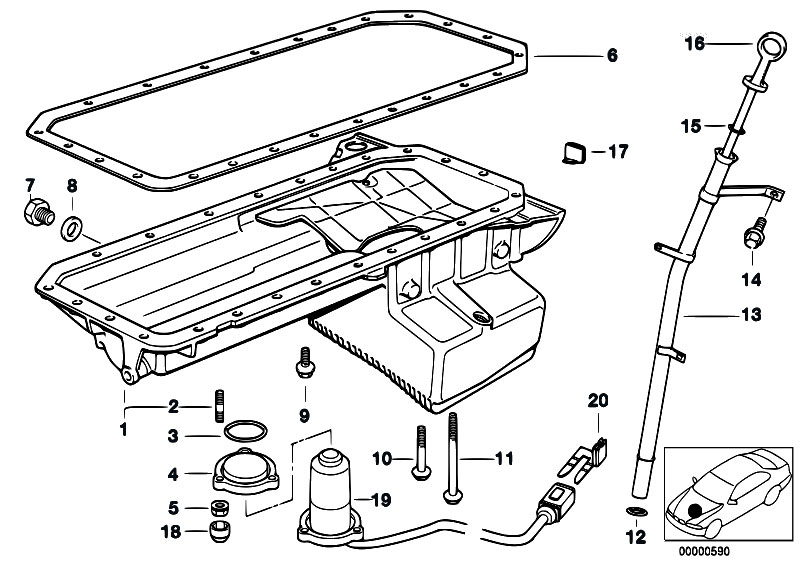

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11132246678 | Oil pan | 3.770 kg | 593.95 €593.95 $ | ||||
| 2 | 07129908100 | Stud bolt | M6X25-ZN | 0.000 kg | 1.68 €1.68 $ | |||
| 3 | 12611277129 | Gasket ring | 40X4 | 0.003 kg | 7.18 €7.18 $ | |||
| 4 | 11131726357 | Cover lid | 0.032 kg | 12.48 €12.48 $ | ||||
| 5 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ | |||
| 6 | 11139066503 | Gasket Asbestos Free | 0.149 kg | 34.81 €34.81 $ | ||||
| 7 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.19 €5.19 $ | |||
| 8 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 9 | 07119915190 | Hex Bolt with washer | M6X20-Z1 | 0.007 kg | 0.13 €0.13 $ | |||
| 9 | 11132246986 | Original OEM part | 0.100 kg | 0.49 €0.49 $ | ||||
| 9 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.16 €1.16 $ | |||
| 10 | 07119913001 | Hex Bolt with washer | M6X60-Z3 | 0.014 kg | 0.35 €0.35 $ | |||
| 10 | 11132246987 | Original OEM part | 0.100 kg | 0.78 €0.78 $ | ||||
| 10 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.87 €1.87 $ | |||
| 11 | 11122245529 | Hex Bolt with washer | M6X100-Z1 | 0.021 kg | 8.24 €8.24 $ | |||
| 11 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.51 €2.51 $ | |||
| 12 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.34 €2.34 $ | |||
| 13 | 11432246651 | Guide tube | L=524MM | 0.238 kg | 65.15 €65.15 $ | |||
| 13 | 11432245124 | Guide tube | L=508MM | 0.201 kg | 33.07 €33.07 $ | |||
| 13 | 11432246651 | Guide tube | L=524MM | 0.238 kg | 65.15 €65.15 $ | |||
| 14 | 07119915041 | Hex Bolt with washer | M6X10-Z1 | 0.006 kg | 4.91 €4.91 $ | |||
| 14 | 07119900438 | Saucer-head screw | M8X22 | 0.014 kg | 1.18 €1.18 $ | |||
| 15 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.01 €1.01 $ | |||
| 16 | 11432244255 | Dipstick | 0.024 kg | 23.98 €23.98 $ | ||||
| 16 | 11432243911 | Dipstick | 0.025 kg | 34.07 €34.07 $ | ||||
| 16 | 11432246521 | Dipstick | 0.024 kg | 27.25 €27.25 $ | ||||
| 16 | 11432243911 | Dipstick | 0.025 kg | 34.07 €34.07 $ | ||||
| 17 | 11131717720 | Cover | 0.015 kg | 7.61 €7.61 $ | ||||
| 18 | 46621453668 | Cap | M6 | 0.000 kg | 1.45 €1.45 $ | |||
| 19 | 12612246614 | OIL LEVELLING SWITCH | 0.148 kg | 257.16 €257.16 $ | ||||
| 20 | 12522246458 | Cable clamp | 0.005 kg | 0.78 €0.78 $ |
