E36 M3 S50 Sedan / Fuel Preparation System/ Valves Pipes Of Fuel Injection System
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

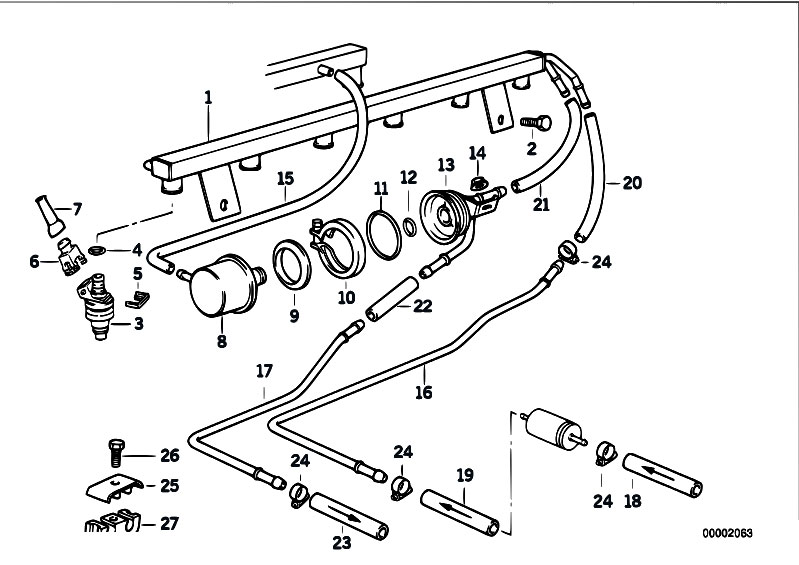

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 13531401591 | INJECTION TUBE | 0.401 kg | 618.34 €618.34 $ | ||||
| 2 | 07119913442 | Hex Bolt | M6X12 | 0.000 kg | 2.37 €2.37 $ | |||
| 3 | 13641310641 | INJECTION VALVE | BOSCH | 0.089 kg | 251.69 €251.69 $ | |||
| 4 | 13641730767 | O-ring | 7,52X3,53 | 0.001 kg | 5.65 €5.65 $ | |||
| 5 | 13531274729 | Clamp | 0.002 kg | 1.47 €1.47 $ | ||||
| 6 | 12521706121 | Plug housing | 2-POL | 0.005 kg | 3.66 €3.66 $ | |||
| 7 | 61131358330 | PROTECTION CAP | L=12,5MM | 0.004 kg | 7.20 €7.20 $ | |||
| 8 | 13531715685 | PRESSURE REGULATOR | 3,0BAR | 0.054 kg | 288.54 €288.54 $ | |||
| 9 | 13531718362 | Retainer | 0.002 kg | 4.54 €4.54 $ | ||||
| 10 | 13531718361 | MUFFLER CLAMP | 0.028 kg | 8.08 €8.08 $ | ||||
| 11 | 13531720251 | O-ring | 20X2,5 | 0.001 kg | 7.96 €7.96 $ | |||
| 12 | 13531720252 | O-ring | 5X1,5 | 0.001 kg | 6.27 €6.27 $ | |||
| 13 | 13531401558 | Housing | 0.067 kg | 388.73 €388.73 $ | ||||
| 14 | 07129900681 | Hex nut with plate | AM6-ZNS | 0.003 kg | 0.22 €0.22 $ | |||
| 14 | 07129904553 | Hex nut with plate | AM6-8-ZNNIV SI | 0.000 kg | 0.74 €0.74 $ | |||
| 15 | 13531315003 | Vacuum hose | 0.027 kg | 9.19 €9.19 $ | ||||
| 16 | 13311401593 | Fuel feed line | 0.101 kg | 96.99 €96.99 $ | ||||
| 17 | 13311401594 | FUEL RETURN LINE | 0.074 kg | 78.91 €78.91 $ | ||||
| 18 | 13311703490 | KIT FOR FUEL HOSE AND CLAMP | 50MM/FPM | 0.020 kg | 15.12 €15.12 $ | |||
| 19 | 13311404311 | KIT FOR FUEL HOSE AND CLAMP | 310MM/FPM | 0.069 kg | 22.72 €22.72 $ | |||
| 20 | 13311403416 | KIT FOR FUEL HOSE AND CLAMP | .70MM/FPM | 0.020 kg | 18.53 €18.53 $ | |||
| 21 | 13311403418 | KIT FOR FUEL HOSE AND CLAMP | 105MM/FPM | 0.030 kg | 13.52 €13.52 $ | |||
| 22 | 13311403416 | KIT FOR FUEL HOSE AND CLAMP | .70MM/FPM | 0.020 kg | 18.53 €18.53 $ | |||
| 23 | 13311404311 | KIT FOR FUEL HOSE AND CLAMP | 310MM/FPM | 0.069 kg | 22.72 €22.72 $ | |||
| 24 | 07129952104 | Hose clamp | L12-15 | 0.010 kg | 1.68 €1.68 $ | |||
| 25 | 13531717650 | FUEL PIPE BRACKET | 0.019 kg | 6.07 €6.07 $ | ||||
| 26 | 07119913477 | Hex Bolt | M6X20 | 0.005 kg | 0.32 €0.32 $ | |||
| 27 | 16121107928 | CLAMPING | 0.002 kg | 4.33 €4.33 $ |
