E39 520d M47 Touring / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

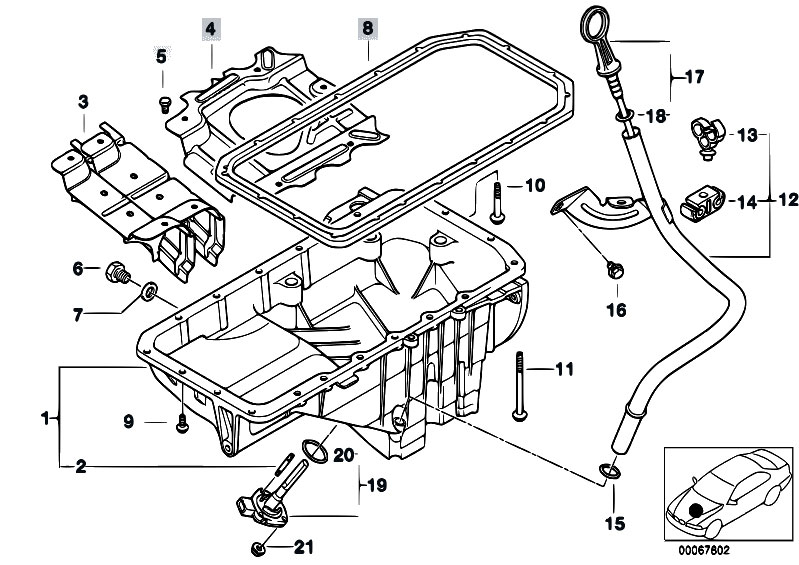

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11137789387 | Oil pan | 3.770 kg | 386.75 €386.75 $ | ||||
| 2 | 07129901921 | Stud bolt | M6X30-8.8-ZNS | 0.005 kg | 1.09 €1.09 $ | |||
| 3 | 11137786702 | Splash plate | 0.039 kg | 17.81 €17.81 $ | ||||
| 4 | 11137785072 | Oil deflector | 0.470 kg | 32.24 €32.24 $ | ||||
| 5 | 11731437790 | Collar screw | M6 X 16 | 0.010 kg | 0.43 €0.43 $ | |||
| 5 | 12517805605 | Collar screw | M6 X 16 | 0.010 kg | 2.34 €2.34 $ | |||
| 6 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.19 €5.19 $ | |||
| 7 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 8 | 11138070005 | Gasket Asbestos Free | 0.149 kg | 31.42 €31.42 $ | ||||
| 9 | 11132246986 | Original OEM part | 0.100 kg | 0.49 €0.49 $ | ||||
| 9 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.16 €1.16 $ | |||
| 10 | 11132246987 | Original OEM part | 0.100 kg | 0.78 €0.78 $ | ||||
| 10 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.87 €1.87 $ | |||
| 11 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.51 €2.51 $ | |||
| 12 | 11437785075 | Guide tube | 0.297 kg | 98.99 €98.99 $ | ||||
| 13 | 61138380213 | Tubing support | 0.000 kg | 2.12 €2.12 $ | ||||
| 14 | 61138352829 | Cable holder | 0.000 kg | 2.82 €2.82 $ | ||||
| 15 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.34 €2.34 $ | |||
| 16 | 07119905525 | Hex Bolt with washer | M6X14-U1-8.8 | 0.006 kg | 0.67 €0.67 $ | |||
| 17 | 11437785143 | Dipstick | 0.026 kg | 34.07 €34.07 $ | ||||
| 18 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.01 €1.01 $ | |||
| 19 | 12617508003 | Oil levelling sensor | 0.091 kg | 226.30 €226.30 $ | ||||
| 20 | 12611744292 | Gasket ring | 0.000 kg | 6.39 €6.39 $ | ||||
| 21 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ |
