E39 525d M57 Sedan / Rear Axle/ Rear Axle Carrier
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

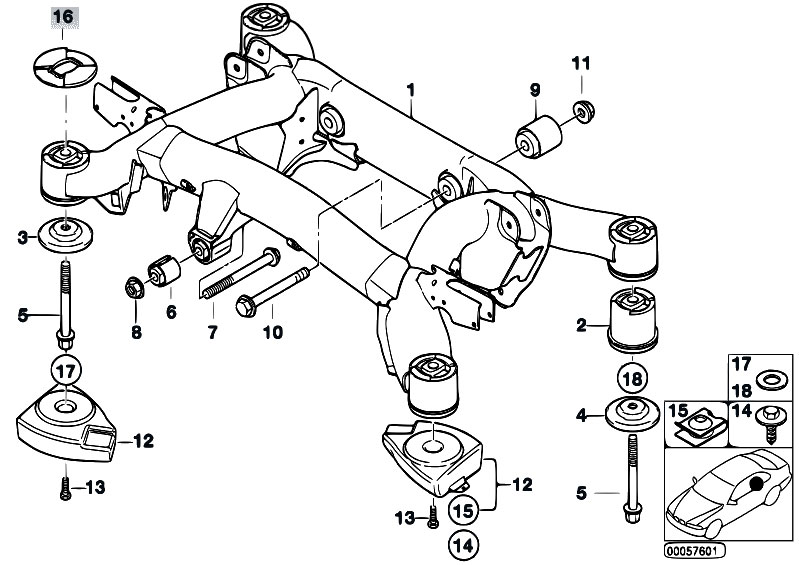

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33311097248 | REAR AXLE CARRIER | 14.280 kg | 1,490.48 €1,490.48 $ | ||||
| 2 | 33311091422 | Rubber mounting | 0.563 kg | 92.11 €92.11 $ | ||||
| 3 | 33311093099 | Stopper, front | 0.063 kg | 5.89 €5.89 $ | ||||
| 4 | 33311093936 | Stopper | 0.089 kg | 28.71 €28.71 $ | ||||
| 4 | 33316752033 | Stopper | 0.063 kg | 6.20 €6.20 $ | ||||
| 5 | 33321093123 | Hex Bolt with washer | M14X1,5X112 | 0.210 kg | 13.03 €13.03 $ | |||
| 6 | 33171090389 | Rubber mounting front | 0.130 kg | 121.73 €121.73 $ | ||||
| 7 | 33176760342 | Hex Bolt with washer | M14X110-10.9 | 0.150 kg | 12.03 €12.03 $ | |||
| 8 | 33306760349 | Self-locking collar nut | M14X1,5-10 ZNS3 | 0.040 kg | 3.80 €3.80 $ | |||
| 9 | 33171093008 | RUBBER MOUNTING rear | 0.229 kg | 35.56 €35.56 $ | ||||
| 10 | 33326760346 | Hex Bolt with washer | M12X1,5X87 ZNS3 | 0.090 kg | 6.60 €6.60 $ | |||
| 11 | 33321093103 | Original OEM part | 0.100 kg | 1.37 €1.37 $ | ||||
| 11 | 33326760374 | Self-locking collar nut | M12X1,5-10 ZNS3 | 0.030 kg | 5.89 €5.89 $ | |||
| 12 | 33321092481 | COVER F LEFT REAR AXLE CARRIER | 0.200 kg | 16.11 €16.11 $ | ||||
| 12 | 33321092482 | COVER F RIGHT REAR AXLE CARRIER | 0.200 kg | 13.33 €13.33 $ | ||||
| 13 | 07119901125 | Hex Bolt | M8X25-8.8-ZNS | 0.013 kg | 1.28 €1.28 $ | |||
| 14 | 07147129161 | Hex head screw | ST 4.8X18 | 0.010 kg | 0.74 €0.74 $ | |||
| 15 | 07129925734 | Body nut | ST4,8-9 | 0.002 kg | 0.11 €0.11 $ | |||
| 16 | 33312229141 | Damping washer | 0.022 kg | 40.43 €40.43 $ | ||||
| 18 | 33311097351 | Washer | 3MM | 0.005 kg | 3.31 €3.31 $ |
