E39 525td M51 Sedan / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

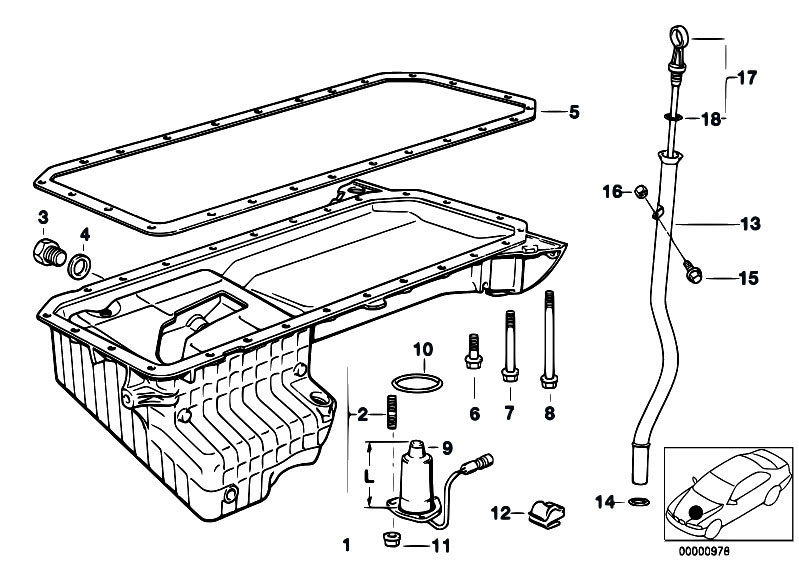

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11132245975 | Oil pan | 3.814 kg | 573.21 €573.21 $ | ||||
| 2 | 07129908102 | Stud bolt | M6X30-ZN | 0.004 kg | 0.51 €0.51 $ | |||
| 3 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.19 €5.19 $ | |||
| 4 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 5 | 11139066503 | Gasket Asbestos Free | 0.149 kg | 34.81 €34.81 $ | ||||
| 6 | 07119915190 | Hex Bolt with washer | M6X20-Z1 | 0.007 kg | 0.13 €0.13 $ | |||
| 6 | 11132246986 | Original OEM part | 0.100 kg | 0.49 €0.49 $ | ||||
| 6 | 11137800619 | Torx bolt | M6X22 | 0.010 kg | 1.16 €1.16 $ | |||
| 7 | 07119913001 | Hex Bolt with washer | M6X60-Z3 | 0.014 kg | 0.35 €0.35 $ | |||
| 7 | 11132246987 | Original OEM part | 0.100 kg | 0.78 €0.78 $ | ||||
| 7 | 11137800622 | Torx bolt | M6X60 | 0.020 kg | 1.87 €1.87 $ | |||
| 8 | 11122245529 | Hex Bolt with washer | M6X100-Z1 | 0.021 kg | 8.24 €8.24 $ | |||
| 8 | 11137800623 | Torx bolt | M6X100 | 0.020 kg | 2.51 €2.51 $ | |||
| 9 | 12617508001 | Oil levelling sensor | 0.110 kg | 212.79 €212.79 $ | ||||
| 10 | 12611744292 | Gasket ring | 0.000 kg | 6.39 €6.39 $ | ||||
| 11 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ | |||
| 12 | 11787548951 | Cable clamp | 0.010 kg | 2.35 €2.35 $ | ||||
| 13 | 11432246314 | Guide tube | 0.212 kg | 70.58 €70.58 $ | ||||
| 14 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.34 €2.34 $ | |||
| 15 | 07119910446 | Saucer-head screw | M8X25 | 0.015 kg | 1.48 €1.48 $ | |||
| 16 | 11611713432 | Hex nut with flange | M8 | 0.006 kg | 0.96 €0.96 $ | |||
| 17 | 11432243911 | Dipstick | 0.025 kg | 34.07 €34.07 $ | ||||
| 18 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.01 €1.01 $ |
