E46 318i M43 Touring / Engine/ Timing Case 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

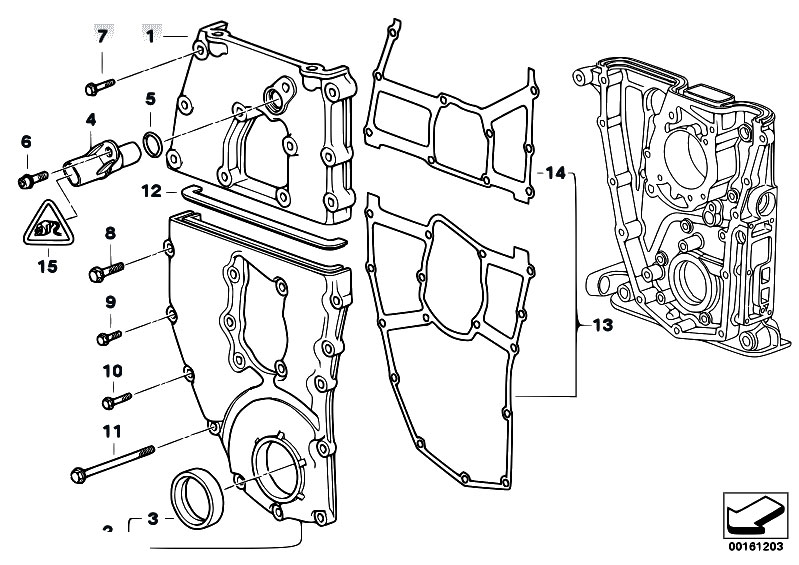

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11141433353 | Timing case cover, top | 0.504 kg | 408.47 €408.47 $ | ||||
| 2 | 11141439645 | Timing case cover, bottom | 0.630 kg | 134.04 €134.04 $ | ||||
| 3 | 11141439570 | Shaft seal | 44X60X10 | 0.024 kg | 26.26 €26.26 $ | |||
| 4 | 12141438082 | Pulse generator, camshaft | 0.020 kg | 80.75 €80.75 $ | ||||
| 4 | 12147518628 | Pulse generator, camshaft | 0.030 kg | 120.74 €120.74 $ | ||||
| 5 | 12141748398 | O-ring | 17X3 | 0.000 kg | 2.46 €2.46 $ | |||
| 6 | 11421740488 | Fillister head screw | M6X16 | 0.010 kg | 12.83 €12.83 $ | |||
| 7 | 07119901973 | Hex Bolt with washer | M6X35-Z1-ZNS | 0.009 kg | 1.02 €1.02 $ | |||
| 8 | 07119901137 | Hex Bolt with washer | M8X30-Z1-ZNS | 0.018 kg | 0.48 €0.48 $ | |||
| 8 | 07119905532 | Hex Bolt with washer | M8X30-ZNNIV SI | 0.020 kg | 0.82 €0.82 $ | |||
| 9 | 07119901787 | Hex Bolt with washer | M6X20-Z1-ZNS | 0.007 kg | 0.24 €0.24 $ | |||
| 10 | 07119901943 | Hex Bolt with washer | M6X30-Z1-ZNS | 0.009 kg | 0.29 €0.29 $ | |||
| 11 | 07119901675 | Hex Bolt with washer | M8X80-Z1 | 0.030 kg | 1.25 €1.25 $ | |||
| 11 | 07119906270 | Hex Bolt with washer | M8X80-U1-8.8 | 0.030 kg | 5.20 €5.20 $ | |||
| 12 | 11141709594 | Profile-gasket | 0.011 kg | 10.48 €10.48 $ | ||||
| 13 | 11141743033 | Gasket Steel | 0.026 kg | 20.66 €20.66 $ | ||||
| 14 | 11141743191 | Gasket Steel | 0.016 kg | 20.52 €20.52 $ | ||||
| 15 | 12521433917 | Socket housing | 3 POL. | 0.008 kg | 5.04 €5.04 $ |
