E65 740d M67 Sedan / Engine/ Oil Pan Oil Level Indicator
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

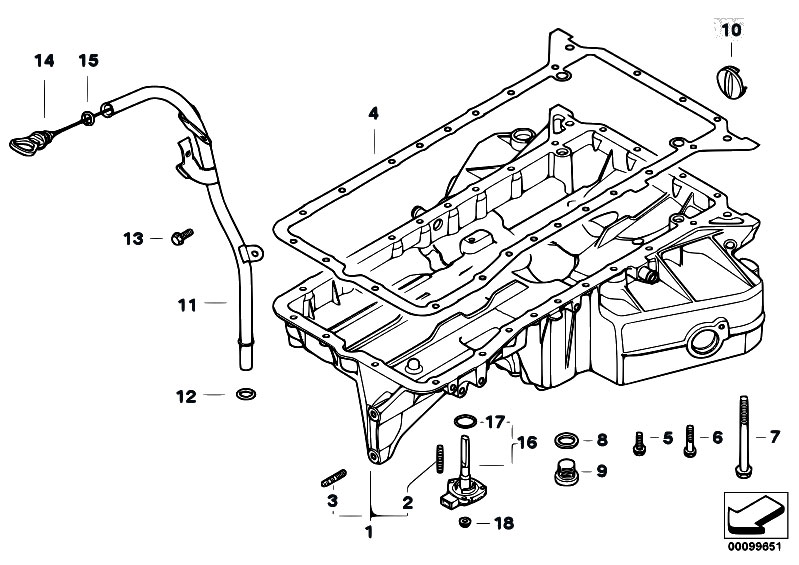

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11137789058 | Oil pan | 8.190 kg | 809.00 €809.00 $ | ||||
| 2 | 07129901921 | Stud bolt | M6X30-8.8-ZNS | 0.005 kg | 1.09 €1.09 $ | |||
| 3 | 07129901790 | Stud bolt | M8X45-ZNS | 0.014 kg | 0.43 €0.43 $ | |||
| 3 | 07129903965 | Stud bolt | M8X45-8.8-ZNS3 | 0.013 kg | 3.65 €3.65 $ | |||
| 4 | 11130005324 | Gasket Steel | 0.161 kg | 87.85 €87.85 $ | ||||
| 5 | 07119903849 | Hex Bolt with washer | M6X20-U1-ZNS3 | 0.010 kg | 0.43 €0.43 $ | |||
| 6 | 07119903852 | Hex Bolt with washer | M6X30-ZNS3 | 0.010 kg | 1.77 €1.77 $ | |||
| 7 | 07119903947 | Hex Bolt with washer | M8X75-Z1-ZNS3 | 0.031 kg | 5.32 €5.32 $ | |||
| 8 | 07119963151 | Gasket ring | A12X17-CU | 0.000 kg | 0.53 €0.53 $ | |||
| 9 | 11137535106 | Screw plug | M12X16 | 0.020 kg | 5.19 €5.19 $ | |||
| 10 | 11137789024 | Cover lid | 0.030 kg | 11.70 €11.70 $ | ||||
| 11 | 11437789060 | Guide tube | 0.300 kg | 139.38 €139.38 $ | ||||
| 12 | 11437794698 | O-ring | 14X3 | 0.000 kg | 2.34 €2.34 $ | |||
| 13 | 07119901588 | Hex Bolt with washer | M6X14-Z2-ZNS | 0.007 kg | 0.43 €0.43 $ | |||
| 14 | 11437789841 | Dipstick | 0.029 kg | 27.84 €27.84 $ | ||||
| 15 | 11431717666 | O-ring | 9X2,2 | 0.000 kg | 1.01 €1.01 $ | |||
| 16 | 12617508003 | Oil levelling sensor | 0.091 kg | 226.30 €226.30 $ | ||||
| 17 | 12611744292 | Gasket ring | 0.000 kg | 6.39 €6.39 $ | ||||
| 18 | 07129905411 | Hex nut | BM6-8-ZNNIV SI | 0.000 kg | 0.82 €0.82 $ |
