E90 320d M47N2 Sedan / Steering/ Hydro Steering Oil Pipes
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

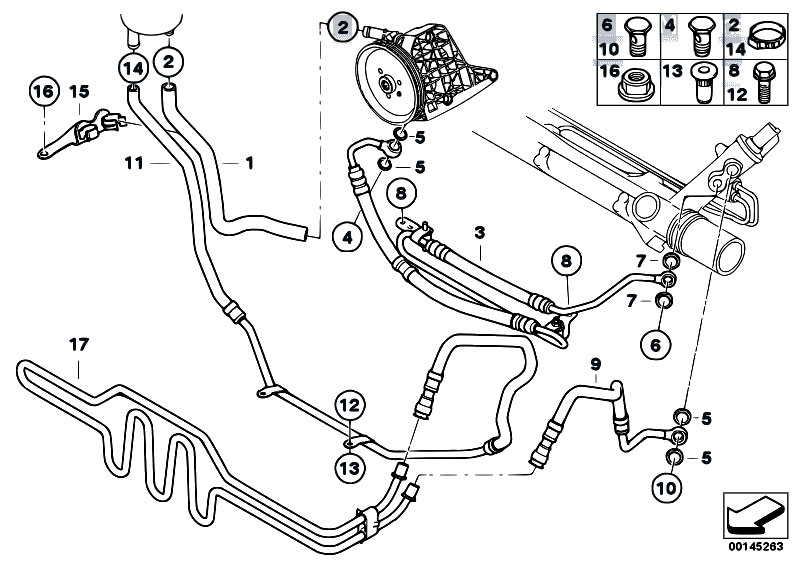

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 32416764738 | Suction pipe | 0.120 kg | 67.38 €67.38 $ | ||||
| 2 | 32416751127 | Hose clamp | 0.010 kg | 1.99 €1.99 $ | ||||
| 3 | 32416777050 | Expansion hose | 0.871 kg | 379.60 €379.60 $ | ||||
| 3 | 32416774314 | Expansion hose | 0.966 kg | 417.74 €417.74 $ | ||||
| 3 | 32416779314 | Expansion hose | 1.010 kg | 330.64 €330.64 $ | ||||
| 3 | 32416777050 | Expansion hose | 0.871 kg | 379.60 €379.60 $ | ||||
| 3 | 32416779316 | Expansion hose | 0.820 kg | 324.94 €324.94 $ | ||||
| 4 | 32411094909 | HOLLOW BOLT | M16X28 | 0.040 kg | 4.37 €4.37 $ | |||
| 4 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.04 €6.04 $ | |||
| 4 | 32416756014 | Hollow bolt with extension | M16X28 | 0.036 kg | 2.47 €2.47 $ | |||
| 4 | 32416781666 | Hollow bolt with extension | M16X28 | 0.040 kg | 8.56 €8.56 $ | |||
| 5 | 32416778543 | Gasket ring | A16X22 SFCU F22 | 0.000 kg | 0.39 €0.39 $ | |||
| 6 | 32411093730 | Banjo bolt with check valve | M14X1,5X27,4 | 0.030 kg | 8.27 €8.27 $ | |||
| 6 | 32416781261 | Banjo bolt with check valve | M14X1,5X27,4 | 0.030 kg | 19.22 €19.22 $ | |||
| 7 | 32411093596 | Gasket ring | A14X20-CUSN | 0.002 kg | 1.37 €1.37 $ | |||
| 8 | 07119904094 | Hex Bolt | M6X12-8.8-ZNS3 | 0.000 kg | 0.32 €0.32 $ | |||
| 9 | 32416775529 | Return pipe | 0.430 kg | 127.54 €127.54 $ | ||||
| 9 | 32416781377 | Return pipe | 0.430 kg | 187.02 €187.02 $ | ||||
| 9 | 32416775529 | Return pipe | 0.430 kg | 127.54 €127.54 $ | ||||
| 9 | 32416781377 | Return pipe | 0.430 kg | 187.02 €187.02 $ | ||||
| 9 | 32416764760 | Return pipe | 0.250 kg | 116.39 €116.39 $ | ||||
| 9 | 32416775527 | Return pipe | 0.250 kg | 116.85 €116.85 $ | ||||
| 10 | 32411094909 | HOLLOW BOLT | M16X28 | 0.040 kg | 4.37 €4.37 $ | |||
| 10 | 32416783887 | HOLLOW BOLT | M16X28 | 0.040 kg | 6.04 €6.04 $ | |||
| 11 | 32416764762 | Radiator return line | 0.520 kg | 114.02 €114.02 $ | ||||
| 11 | 32416775528 | Radiator return line | 0.390 kg | 116.39 €116.39 $ | ||||
| 11 | 32416775536 | Radiator return line | 0.390 kg | 179.47 €179.47 $ | ||||
| 12 | 07119900251 | Hex Bolt with washer | M6X18-Z1-ZNS | 0.006 kg | 0.20 €0.20 $ | |||
| 12 | 07119905399 | Hex Bolt with washer | M6X18-U1 | 0.010 kg | 0.43 €0.43 $ | |||
| 13 | 41117000240 | Blind rivet nut, flat headed | M6 | 0.000 kg | 1.30 €1.30 $ | |||
| 13 | 07146989330 | Blind rivet nut, flat headed | M6 | 0.000 kg | 2.50 €2.50 $ | |||
| 14 | 32416751128 | Hose clamp | 0.010 kg | 1.82 €1.82 $ | ||||
| 15 | 32416770473 | Bracket, sterring lines | 0.030 kg | 42.16 €42.16 $ | ||||
| 16 | 07119905128 | Hex nut | M6-8-ZNS3 | 0.000 kg | 0.40 €0.40 $ | |||
| 17 | 17117522050 | Power steering loop | 0.230 kg | 93.27 €93.27 $ |
