E90N 320i N46N Sedan / Fuel Supply/ Fuel Pipes Mounting Parts 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

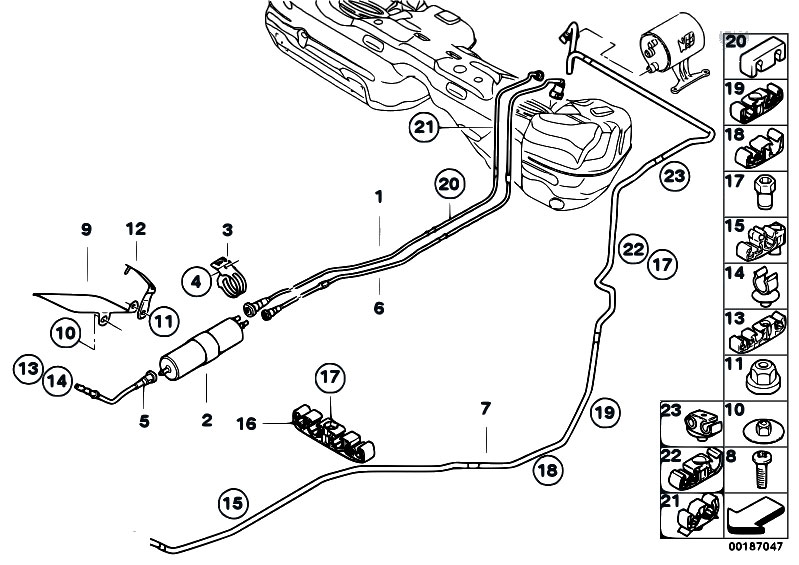

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 16127191147 | REAR FUEL FEED LINE | 0.050 kg | 69.72 €69.72 $ | ||||
| 1 | 16127191147 | REAR FUEL FEED LINE | 0.050 kg | 69.72 €69.72 $ | ||||
| 2 | 16127233840 | Fuel filter | 0.240 kg | 64.98 €64.98 $ | ||||
| 2 | 16127233840 | Fuel filter | 0.240 kg | 64.98 €64.98 $ | ||||
| 3 | 13327792259 | Clamp | 0.120 kg | 16.88 €16.88 $ | ||||
| 3 | 13327792259 | Clamp | 0.120 kg | 16.88 €16.88 $ | ||||
| 4 | 13327795070 | Countersunk screw | M4X8-A2 | 0.000 kg | 4.35 €4.35 $ | |||
| 4 | 13327795070 | Countersunk screw | M4X8-A2 | 0.000 kg | 4.35 €4.35 $ | |||
| 5 | 16127191148 | FRONT FUEL FEED LINE | 0.010 kg | 59.16 €59.16 $ | ||||
| 5 | 16127191148 | FRONT FUEL FEED LINE | 0.010 kg | 59.16 €59.16 $ | ||||
| 6 | 16127191149 | FUEL RETURN LINE | 0.060 kg | 90.98 €90.98 $ | ||||
| 6 | 16127191149 | FUEL RETURN LINE | 0.060 kg | 90.98 €90.98 $ | ||||
| 7 | 16136765752 | Scavenge air line | 0.200 kg | 182.93 €182.93 $ | ||||
| 7 | 16136765752 | Scavenge air line | 0.200 kg | 182.93 €182.93 $ | ||||
| 8 | 07119906041 | Hex Bolt with washer | M8X20-U1-A2-70 | 0.010 kg | 1.74 €1.74 $ | |||
| 8 | 07119906041 | Hex Bolt with washer | M8X20-U1-A2-70 | 0.010 kg | 1.74 €1.74 $ | |||
| 9 | 16127174891 | Protection plate | 0.650 kg | 45.20 €45.20 $ | ||||
| 9 | 16127174891 | Protection plate | 0.650 kg | 45.20 €45.20 $ | ||||
| 10 | 07146949379 | Body nut | D=18MM, ZNS-3 | 0.000 kg | 0.62 €0.62 $ | |||
| 10 | 07146949379 | Body nut | D=18MM, ZNS-3 | 0.000 kg | 0.62 €0.62 $ | |||
| 11 | 51161943122 | Plastic nut | 0.000 kg | 0.61 €0.61 $ | ||||
| 11 | 51161943122 | Plastic nut | 0.000 kg | 0.61 €0.61 $ | ||||
| 12 | 16127181073 | Bracket | 0.040 kg | 14.37 €14.37 $ | ||||
| 12 | 16127181073 | Bracket | 0.040 kg | 14.37 €14.37 $ | ||||
| 13 | 16126763897 | Pipe clip | D8/D12/2XD4,75 | 0.010 kg | 8.62 €8.62 $ | |||
| 13 | 16126763897 | Pipe clip | D8/D12/2XD4,75 | 0.010 kg | 8.62 €8.62 $ | |||
| 14 | 16126766396 | Pipe clip | D8 | 0.000 kg | 2.05 €2.05 $ | |||
| 14 | 16126766396 | Pipe clip | D8 | 0.000 kg | 2.05 €2.05 $ | |||
| 15 | 16126766232 | Pipe clip | D12/2XD4,75 | 0.010 kg | 3.62 €3.62 $ | |||
| 15 | 16126766232 | Pipe clip | D12/2XD4,75 | 0.010 kg | 3.62 €3.62 $ | |||
| 16 | 16127193399 | Clip | 0.010 kg | 5.30 €5.30 $ | ||||
| 16 | 16127193399 | Clip | 0.010 kg | 5.30 €5.30 $ | ||||
| 17 | 16126766237 | Bolting pin, short | 0.000 kg | 0.42 €0.42 $ | ||||
| 17 | 16126766237 | Bolting pin, short | 0.000 kg | 0.42 €0.42 $ | ||||
| 18 | 16126768380 | SPACER HOLDER | D12/5,1/5,1 | 0.010 kg | 5.84 €5.84 $ | |||
| 18 | 16126768380 | SPACER HOLDER | D12/5,1/5,1 | 0.010 kg | 5.84 €5.84 $ | |||
| 19 | 16127163595 | Pipe clip | D12/D5,1/D5,1 | 0.010 kg | 3.62 €3.62 $ | |||
| 19 | 16127163595 | Pipe clip | D12/D5,1/D5,1 | 0.010 kg | 3.62 €3.62 $ | |||
| 20 | 16126756924 | FUEL PIPE BRACKET | 0.000 kg | 6.39 €6.39 $ | ||||
| 20 | 16126756924 | FUEL PIPE BRACKET | 0.000 kg | 6.39 €6.39 $ | ||||
| 21 | 16126765062 | Pipe clip | 0.010 kg | 3.77 €3.77 $ | ||||
| 21 | 16126765062 | Pipe clip | 0.010 kg | 3.77 €3.77 $ | ||||
| 22 | 16126766234 | Pipe clip | D12/2XD4,75 | 0.010 kg | 6.30 €6.30 $ | |||
| 22 | 16126766234 | Pipe clip | D12/2XD4,75 | 0.010 kg | 6.30 €6.30 $ | |||
| 23 | 16126766397 | Pipe clip | D14 | 0.000 kg | 2.42 €2.42 $ | |||
| 23 | 16126766397 | Pipe clip | D14 | 0.000 kg | 2.42 €2.42 $ |
