E92 330xd M57N2 Coupe / Rear Axle/ Differential Drive Output 2
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

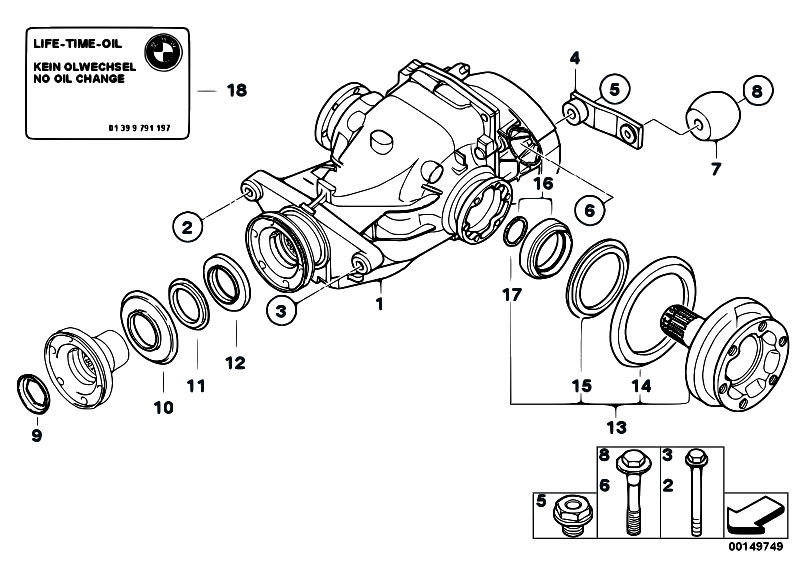

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 33107519454 | Original OEM part | 0.100 kg | 1,607.94 €1,607.94 $ | ||||
| 1 | 33107571181 | Rmfd final drive | I=2,93 | 37.800 kg | 2,997.31 €2,997.31 $ | |||
| 1 | 33107566276 | Rmfd final drive | I=2,93 | 32.200 kg | 1,905.05 €1,905.05 $ | |||
| 2 | 33176760343 | Hex Bolt with washer | M12X100-10.9 | 0.100 kg | 7.00 €7.00 $ | |||
| 3 | 33176760343 | Hex Bolt with washer | M12X100-10.9 | 0.100 kg | 7.00 €7.00 $ | |||
| 4 | 33176773193 | Bracket, vibration absorber | 0.390 kg | 38.64 €38.64 $ | ||||
| 4 | 33176769611 | Bracket, vibration absorber | 0.395 kg | 38.43 €38.43 $ | ||||
| 5 | 33326770288 | Threaded bush | M14X1,5 ZNS3 | 0.070 kg | 10.68 €10.68 $ | |||
| 5 | 33326760380 | Combination nut | M14X1,5-10ZNS3 | 0.040 kg | 7.30 €7.30 $ | |||
| 6 | 33176771109 | Hex Bolt with washer | M14X116-10.9 | 0.190 kg | 12.54 €12.54 $ | |||
| 6 | 33326769647 | Hex Bolt with washer | M14X1,5X138ZNS3 | 0.200 kg | 14.52 €14.52 $ | |||
| 7 | 33176774772 | Vibration absorber | 0.940 kg | 78.28 €78.28 $ | ||||
| 8 | 33176767983 | Hex Bolt with washer | M12X1,5X85-8.8 | 0.090 kg | 15.03 €15.03 $ | |||
| 9 | 33121205138 | Securing plate | 0.010 kg | 3.37 €3.37 $ | ||||
| 9 | 23211490120 | Securing plate | 0.010 kg | 3.50 €3.50 $ | ||||
| 10 | 33127518511 | dustcover plate, large | 0.050 kg | 6.46 €6.46 $ | ||||
| 10 | 33121213903 | Dustcover plate | 0.040 kg | 6.74 €6.74 $ | ||||
| 11 | 33121214064 | dustcover plate, small | 0.020 kg | 12.43 €12.43 $ | ||||
| 12 | 33101213412 | Shaft seal | 50X78X10/15 | 0.041 kg | 25.13 €25.13 $ | |||
| 12 | 33121214443 | Shaft seal | 50X78X10/15 | 0.040 kg | 26.31 €26.31 $ | |||
| 12 | 33101214099 | Shaft seal | 45X75X10 | 0.040 kg | 11.95 €11.95 $ | |||
| 13 | 33131428284 | Drive flange output | LK=94MM/M10 | 1.500 kg | 103.15 €103.15 $ | |||
| 13 | 33131428252 | Drive flange output | LK=86MM/M10 | 4.480 kg | 81.80 €81.80 $ | |||
| 14 | 33131214445 | dustcover plate, large | 0.060 kg | 12.45 €12.45 $ | ||||
| 14 | 33131428097 | dustcover plate, large | 0.040 kg | 43.20 €43.20 $ | ||||
| 15 | 33131214446 | dustcover plate, small | 0.040 kg | 13.60 €13.60 $ | ||||
| 15 | 33131214298 | dustcover plate, small | 0.030 kg | 13.60 €13.60 $ | ||||
| 16 | 33107505605 | Shaft seal with lock ring | 100X50X10 | 0.077 kg | 19.87 €19.87 $ | |||
| 16 | 33107505604 | Shaft seal with lock ring | 90X44X10 | 0.063 kg | 15.94 €15.94 $ | |||
| 17 | 33131213997 | Lock Ring | TYP 215K/220K | 0.000 kg | 1.30 €1.30 $ | |||
| 17 | 33131214961 | Lock Ring | 168K/L 188K/L | 0.000 kg | 1.30 €1.30 $ | |||
| 18 | 01399791197 | Stick-on label | DE, EN | 0.009 kg | 3.62 €3.62 $ |
