F01 750i N63 Sedan / Engine/ Timing Gear Timing Chain Cyl 5 8
- Parts are 100% original parts
- Parts have full factory and store Warranty
- Full refund policy
- Same day order processing
- World wide delivery with DHL

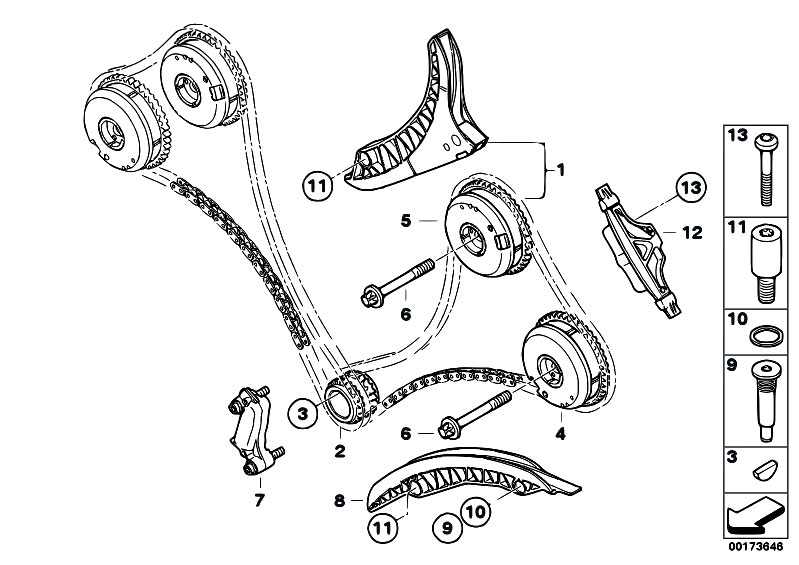

Click on the diagram to maximize or minimize the image
| Id | Part Number | Name | Description | Date | Weight | Price | Quantity | |
| 1 | 11317567500 | Timing chain with tensioning rail | 0.620 kg | 150.86 €150.86 $ | ||||
| 2 | 11217571037 | Sprocket | 0.190 kg | 43.20 €43.20 $ | ||||
| 3 | 07119951453 | WOODRUFF KEY | 4X5 | 0.000 kg | 0.89 €0.89 $ | |||
| 4 | 11367567497 | Original OEM part | 0.100 kg | 323.57 €323.57 $ | ||||
| 4 | 11367598001 | Adjustment unit, inlet camshaft | 1.030 kg | 621.18 €621.18 $ | ||||
| 5 | 11367567498 | Original OEM part | 0.100 kg | 323.57 €323.57 $ | ||||
| 5 | 11367598002 | Adjustment unit, outlet camshaft | 1.030 kg | 621.18 €621.18 $ | ||||
| 6 | 11367564346 | Central screw | M10X1X80 | 0.060 kg | 6.15 €6.15 $ | |||
| 7 | 11317557741 | CHAIN TENSIONER | 0.150 kg | 111.84 €111.84 $ | ||||
| 8 | 11317574397 | GUIDE RAIL | 0.130 kg | 46.56 €46.56 $ | ||||
| 9 | 11317582925 | Bearing screw | 0.060 kg | 11.85 €11.85 $ | ||||
| 10 | 11317550461 | Gasket ring | A14X21 | 0.000 kg | 1.20 €1.20 $ | |||
| 11 | 11317584402 | Bearing screw | 0.040 kg | 7.97 €7.97 $ | ||||
| 12 | 11317565242 | Slide rail | 0.160 kg | 46.56 €46.56 $ | ||||
| 13 | 11127570995 | Isa screw | M7X45-8.8 | 0.020 kg | 2.05 €2.05 $ |
